Tine tillers are used for breaking hard ground, for loosening rocky soil and digging large or small areas. It helps improve soil aeration. It is generally used for cultivating, renovating and preparing seed beds. The equipment’s spring loaded tines swing back under break-away pressure, pass the obstruction, and then return to its working position. All this is done without impacting the implement’s working depth. It shatters the soil and breaks up the clods by its tines’ continual flexing action. Our tine tillers have reversible shovels that allow deep penetration. Its working depth is controlled by a tractor operator.

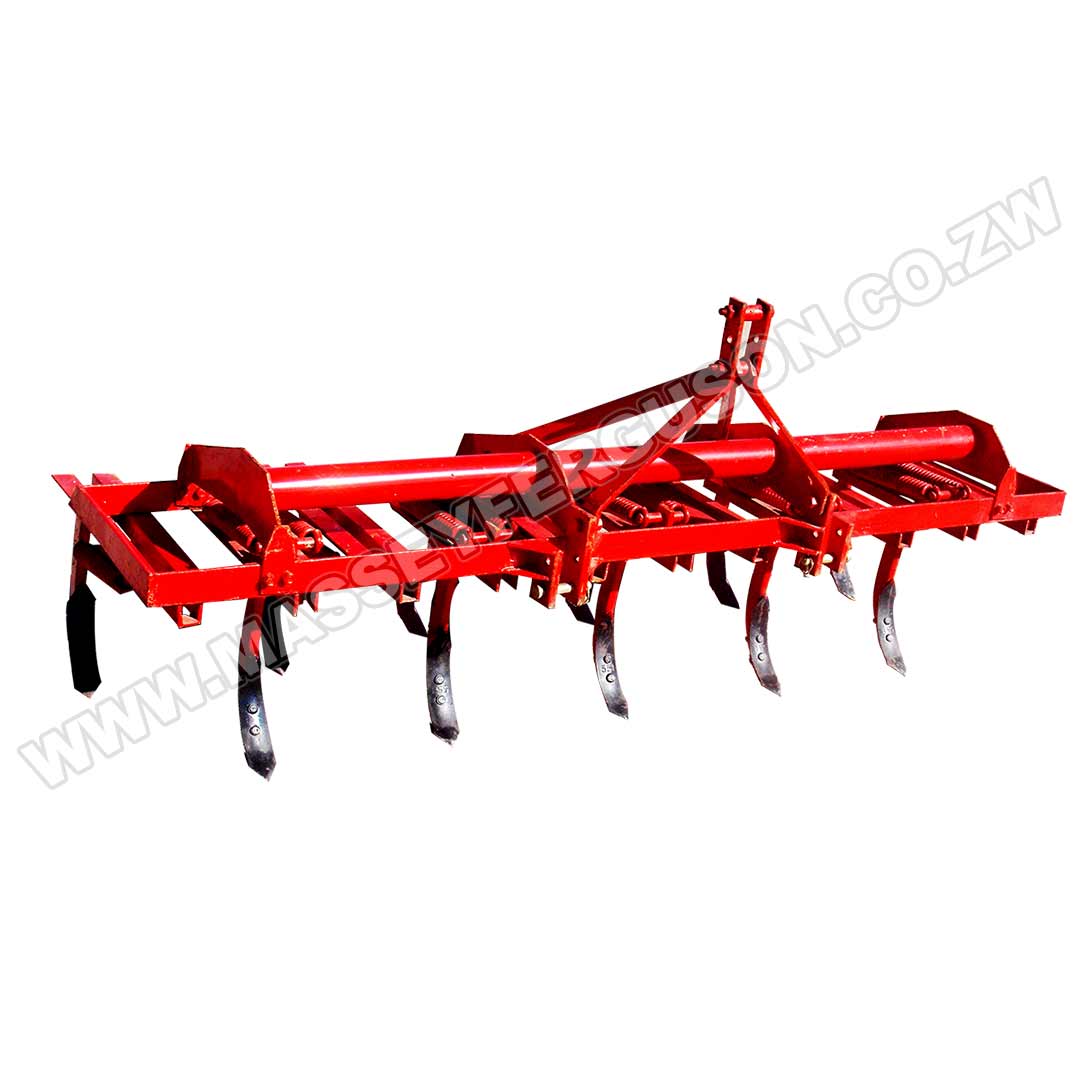

Tine Tillers
Tine Tiller Specification
Frame Type Pipe Set and Z Type
Number of Tines 9,11 & 13
Linkage Category I & II
Working Depth 229 mm
Tine Spacing 229 mm to 254 mm
HP Compatibility 50 to 85 HP
