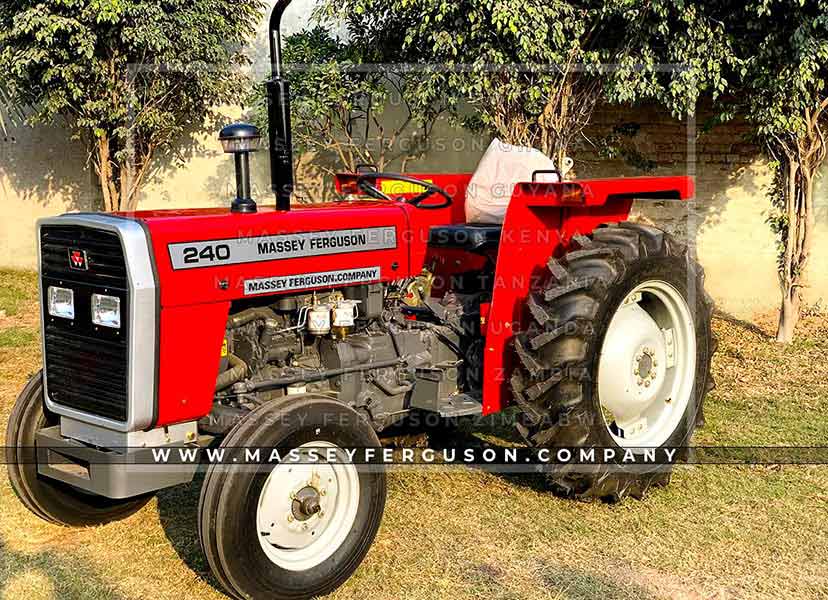

Massey Ferguson MF-240 50hp Tractor for Sale

Massey Ferguson MF-240 50hp Tractor for Sale

Model / Type: Massey Ferguson MF 240
Horse Power: 50hp
Transmission: Manual
Engine: 2.5D
Condition: Brand New

SKU: mf240 Category:
  • This is an economical tractor in a 50 horsepower range.
  • It is compact.
  • Versatile, long-lasting, and an all-rounder.
  • It features a spring suspension deluxe seat.
  • Its spare parts are easily available to us.
  • It has a sliding spur transmission, and eight forward as well as two reverse gears.
  • Its hydraulics feature draft control and position control.
  • It has outboard drum brakes and its actuation is mechanical and is hand lever operated.
  • It features dual-clutch and manual steering.

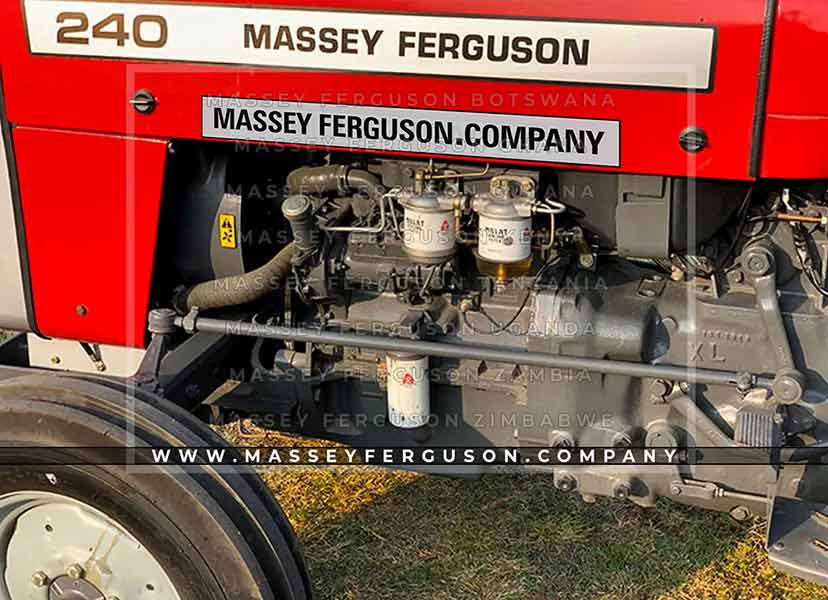

  • It has a Diesel AD 3.1524 engine and three cylinders with a capacity of 2.5 liters.
  • Its gross weight is 1,650 kgs.
Max. Engine Power at 2,250 rpm 50 (B.S) hp
Maximum Torque at 1,400 rpm 172Nm
Maximum PTO Power at Rated 44hp
Engine Speed
*Certified at BS AU 141a 1971 **Manufacturer’s Estimate
Voltage 12V, Negative Earth
Battery 110 Ah
Starter 2.2 kW
Alternator 32 Amp
Type Sliding Spur
Number of Gears 8 Forward, 2 Reverse
Road Speed at 2,250 Engine RPM with 12.4/11-28 Tyres
Gear Speed (km/hr)
Forward 1 (First Low) 2.7
Forward 2 3.9
Forward 3 5.3
Forward 4 7.2
Forward 5 (First High) 10.6
Forward 6 15.4
Forward 7 21.3
Forward 8 28.6
Reverse 1 (Low) 3.6
Reverse 2 (High) 14.5
Functions Draft Control, Position Control
Pump Type Response Control, Constant Pumping
Maximum Oil Flow Reciprocating Ferguson Pump
Maximum Pressure 16L / mix
Max. Lift Capacity with Lower 19.2 Mpa
Links Horizontal Max. Lift Capacity with Lower 1,415 kg
Lower Links With Cat, I & II Interchangeable Balls
Brake Type Out Board Drum Brakes
Actuation Mechanical, Independant or Locked Together, Hand Lever Operated
Parking Brake Mechanical
Different Lock "
Front 6.00 - 16 (6PR)
Rear 12.4 / 11 - 26 (6PR)
Type Dual Clutch
Diameter 305 x 254 mm
Type Box Section, Adjustable
Diameter 305 x 254 mm
Steering Manual
Front Axle 1,245 - 1,854 mm
Rear Axle 1,321 - 1,930 mm
Type Diesel AD 3.1524
No. of Cylinders 3
Injection Direct
Bore 91.4mm
Stroke 127.0mm
Capacity (litres) 2.5 L
Compression Ratio 16.5:1
Aspiratio Natural
Starting Aid Thermostart
Throttle Control Hand and Feet
Cooling Water
Air Cleaner Type Oil Bath
Air Pre-Cleaner Over Bonnet, Air Swirl
Fuel Filter Dual, High Capacity
Exhaust 5Vertical
Type Live
Engine Speed at 540 pto rpm 1,789 rpm
Shaft Diameter 35mm
No. of Splines 6
Guages echnometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature
Warning Lights Direction Indicators, Battery Charge, Headlight Main Beam, Low Engine Oil, Pressure & Brake Lights
Functions Draft Control, Position Control
Pump Type Response Control, Constant Pumping
Maximum Oil Flow Reciprocating Ferguson Pump
Maximum Pressure 16L / mix
Max. Lift Capacity with Lower 19.2 Mpa
Links Horizontal Max. Lift Capacity with Lower 1,415 kg
Lower Links With Cat, I & II Interchangeable Balls
Gross Weight 1,650 kg
Wheel Base 1,892 mm
Overall Length 3,260 mm
Overall Width (Min) 1,651 mm
Over Exhaust 2,145 mm
Over Steering Wheel 1,410 mm
With Brakes 5,560 mm
Without Brakes 6,200 mm
Under Gear Box 338 mm
Fuel Tank 47.5L
Engine Pump 6.8L
Cooling System 10.2L
Hydraulic System 36.0L
Steering Box 0.9L
Oil Bath Air-Cleaner 0.5L
